    Operating Room HVAC: Laminar Flow, Temperature Control, Humidity Ranges, and Particulate Filtration



    Operating Room HVAC: Laminar Flow, Temperature Control, Humidity Ranges, and Particulate Filtration

    Published: March 18, 2026 | Category: HVAC Systems | Publisher: Healthcare Facility Hub

    Laminar Flow: A unidirectional air flow pattern where air moves in parallel lines at uniform velocity from a supply source to exhaust, preventing turbulence and airborne particle accumulation in the breathing zone. Laminar flow is a primary feature of modern operating room HVAC design to minimize surgical site infection risk.

    Operating Room HVAC Overview

    Operating rooms represent the most environmentally controlled spaces in healthcare facilities. ASHRAE 170-2021 and FGI Guidelines specify stringent requirements for operating room HVAC systems to minimize airborne contamination and protect patients from surgical site infections. Modern operating room design combines laminar flow, HEPA filtration, precise temperature and humidity control, and positive pressure relationships to create exceptionally clean environments.

    Infection Control and HVAC Performance

    Surgical site infections (SSIs) cost healthcare systems billions annually and extend patient hospitalization. Airborne particulate matter, including bacterial spores and skin flakes, is a documented SSI risk factor. Operating room HVAC systems that achieve laminar flow and maintain 20-25 air changes per hour with HEPA filtration can reduce airborne particle concentrations by 90% or more, directly supporting infection prevention protocols.

    Laminar Flow Design and Implementation

    Laminar flow in operating rooms is achieved through careful supply and exhaust air management. Supply air is delivered from a large diffuser panel (typically 60-90% of ceiling area) and moves downward with uniform velocity toward floor-level exhaust grilles. This unidirectional flow sweeps contaminants away from the surgical field.

    Vertical Laminar Flow Systems

    Vertical downward laminar flow is the standard for most operating rooms. Supply air enters from ceiling diffusers with velocity of 0.3-0.5 feet per second, creating a consistent downward movement. Exhaust is positioned at floor level or lower wall level, capturing contaminated air before it can rise and circulate.

    Achieving Laminar Flow Uniformity

    Laminar flow uniformity depends on:

    • Supply air velocity: Maintained between 0.3-0.5 ft/sec to minimize turbulence and energy consumption
    • Diffuser coverage: Supply diffusers should cover 60-90% of ceiling area with uniform spacing
    • Obstruction avoidance: Ceiling-mounted lights, surgical booms, and infrastructure must be positioned to minimize flow disruption
    • Exhaust positioning: Floor or lower-wall exhaust grilles prevent upward air circulation
    • Operating table location: Positioned within the highest-quality laminar flow zone (typically center of room)

    ISO Classifications for Operating Rooms

    Operating rooms are classified by ISO 14644-1 standards based on airborne particle concentration. Most modern operating rooms target ISO Class 5 (formerly Class 100) environments:

    • ISO Class 5: Maximum 100,000 particles (0.5 µm+) per cubic foot; achieved with 20-25 ACH and HEPA filtration
    • ISO Class 6: Maximum 1,000,000 particles per cubic foot; 15-20 ACH, appropriate for some procedure types

    Temperature and Humidity Control in Operating Rooms

    Operating room environmental control requires precise temperature and humidity management to support patient physiology, surgeon comfort, and equipment performance.

    Parameter Standard Range Clinical Rationale
    Temperature 68-73°F (20-23°C) Supports anesthetic requirements and minimizes perioperative hypothermia risk
    Relative Humidity 30-60% Below 30% increases static electricity; above 60% promotes microbial growth
    Temperature Stability ±2°F per hour Rapid swings can activate patient thermoregulation
    Humidity Stability ±5% per hour Prevents equipment condensation and maintains static control

    Temperature Management Challenges

    Operating rooms generate significant heat from surgical lights (which produce 500-2,000 watts), surgical equipment, and operating room occupants. The HVAC system must balance heat removal with laminar flow maintenance. Over-cooling wastes energy and can lead to patient hypothermia; insufficient cooling compromises surgeon comfort and equipment reliability.

    Humidity Control

    Humidity control is critical to prevent both mold growth (above 60% RH) and static electricity problems (below 30% RH). Modern operating rooms typically use combination humidification and dehumidification systems to maintain 40-55% RH, balancing infection prevention with equipment protection. Some facilities use low-particulate humidifiers with inline filters to ensure added moisture does not compromise air quality.

    HEPA Filtration Systems

    Operating room HVAC systems employ HEPA (High Efficiency Particulate Air) filters to achieve required air quality. HEPA filters remove 99.97% of particles 0.3 microns and larger, the most penetrating particle size.

    HEPA Filter Placement

    Operating room HEPA filters are typically located in one of two configurations:

    • Terminal HEPA Filter (Ceiling/Plenum): HEPA filter installed in ceiling plenum just upstream of supply diffuser; most common design providing ISO Class 5 or better air directly at ceiling
    • Central HEPA Filter (AHU): HEPA filter installed at air handling unit; less common due to potential for re-contamination in distribution ductwork

    Pre-Filtration

    Pre-filtration upstream of HEPA filters extends HEPA life and improves system efficiency:

    • Primary Pre-filter: MERV 7-8 filter removes large particles and lint
    • Secondary Pre-filter: MERV 13-14 filter captures fine particles before HEPA
    • Pre-filters should be monitored and changed per manufacturer schedule (typically 3-6 months)

    HEPA Filter Monitoring and Maintenance

    HEPA filters require ongoing monitoring to ensure continued performance:

    • Differential pressure across filter indicates loading; manufacturers specify change interval (typically at 0.5-1.0 inches water column differential)
    • Pressure drop monitoring via electronic gauges alerts maintenance when filter change is required
    • Quarterly or bi-annual certification of air cleanliness using particle counters verifies system performance
    • Documentation of filter changes and certifications supports Joint Commission compliance

    Positive Pressure and Supply/Exhaust Balance

    Operating rooms are maintained at positive pressure relative to adjacent spaces (typically 0.02-0.05 inches water column, or 5-12 Pa). Positive pressure ensures air flows outward from the operating room, preventing potentially contaminated corridor air from entering.

    Supply and Exhaust Calculation

    For a 400 square foot operating room with 14-foot ceilings (5,600 cubic feet), achieving 20 ACH:

    • Required air volume: (5,600 × 20) / 60 = 1,867 CFM
    • Supply air: 1,867 CFM
    • Exhaust air: 1,760 CFM (94% of supply for positive pressure)
    • Pressure differential: Positive (inflow of 107 CFM maintains positive pressure)

    Door Pressure and Access Control

    Positive pressure in operating rooms makes door opening difficult if pressure differential is excessive. Designers typically target modest positive pressure (5-15 Pa) to maintain pressure control while allowing reasonable door operation. Some facilities install pressure relief valves to prevent excessive positive pressure buildup.

    Recirculation vs. Outdoor Air Balance

    Modern operating rooms typically employ 80-85% recirculated air and 15-20% outdoor air. Recirculated air passes through HEPA filters before re-entering the operating room, ensuring high air cleanliness while optimizing energy efficiency. Outdoor air intake provides fresh oxygen and dilutes any accumulated odors or trace contaminants.

    Outdoor Air Quality Requirements

    • Intake located at least 25 feet from exhaust outlets
    • Positioned above grade and away from potential contamination sources
    • Protected with insect screens and bird screens
    • Outdoor air supply filtered through MERV 13-14 filters before mixing with recirculated air

    Operating Room HVAC System Components

    A complete operating room HVAC system includes:

    • Air Handling Unit (AHU): Contains supply fan, heating/cooling coils, humidification/dehumidification, and dampers for outdoor/recirculated air control
    • Ductwork: Sized to maintain laminar flow uniformity; often uses low-friction ductwork to minimize pressure drop
    • Supply Diffusers: Ceiling-mounted diffusers (typically 60-90% of ceiling area) deliver air downward at controlled velocity
    • Exhaust Grilles: Floor or lower-wall grilles positioned to capture contaminated air
    • HEPA Filter Modules: Terminal ceiling filters or central AHU filters ensure air cleanliness
    • Monitoring Systems: Pressure transducers, particle counters, and filter differential pressure gauges track system performance

    Integration with Surgical Lighting and Equipment

    Modern operating room surgical lights produce significant heat (500-2,000 watts). Lights and surgical booms are typically suspended from ceiling structures designed not to disrupt laminar flow. Lights may incorporate their own air handling to minimize thermal impact on laminar flow. Surgical equipment (electrosurgical units, anesthesia machines) also generates heat that the HVAC system must accommodate.

    Commissioning and Certification

    Operating room HVAC systems require rigorous commissioning including:

    • Airflow visualization to confirm laminar flow patterns
    • Air velocity measurements at multiple points across ceiling diffuser
    • Particle counts (0.5 µm and 5 µm particles) to verify ISO classification
    • Pressure differential verification between operating room and adjacent spaces
    • Temperature and humidity monitoring during operation

    See our detailed guide on Healthcare HVAC Commissioning for comprehensive testing procedures and documentation requirements.

    Frequently Asked Questions

    Q: What is the minimum air velocity for laminar flow?

    A: ASHRAE 170 recommends 0.3-0.5 feet per second downward velocity from ceiling to floor. Velocity below 0.3 ft/sec may result in turbulent zones; above 0.5 ft/sec increases noise and energy consumption without significant benefit.

    Q: How often should operating room HEPA filters be changed?

    A: HEPA filter change interval depends on pre-filtration effectiveness and facility air quality. Most facilities change HEPA filters every 6-12 months based on differential pressure monitoring. Quarterly or bi-annual air quality certification confirms filter performance.

    Q: Can older operating rooms be retrofitted to meet ASHRAE 170 standards?

    A: Many existing operating rooms can be upgraded with new ceiling diffusers, HEPA filter installation, and damper controls for positive pressure. Comprehensive renovation requires design review and may not achieve optimal ISO Class 5 performance without major ductwork reconstruction.

    Q: What is ISO Class 5 certification and how often is it required?

    A: ISO Class 5 certification documents that particulate concentration meets the standard of no more than 100,000 particles (0.5 µm+) per cubic foot. Many facilities conduct certification at commissioning and annually thereafter, with documentation supporting Joint Commission compliance.

    Q: How does positive pressure prevent surgical site infections?

    A: Positive pressure creates airflow outward from the operating room, preventing unfiltered corridor air (which may contain bacteria) from entering. Combined with HEPA filtration and laminar flow, positive pressure maintains a clean environment that minimizes airborne pathogen exposure to the surgical site.

    Q: What humidity range is best for operating rooms and why?

    A: The 30-60% relative humidity range balances infection prevention with equipment protection. Below 30% increases static electricity (which can damage electronic equipment); above 60% promotes mold and bacterial growth. Most modern facilities maintain 40-55% RH.

    Q: Are hybrid operating rooms (with imaging equipment) different from standard operating rooms?

    A: Hybrid operating rooms have additional challenges including ceiling-mounted imaging booms and more complex infrastructure. They must maintain the same ASHRAE 170 laminar flow and air quality requirements while accommodating imaging equipment. Design requires specialized expertise.

    Related Resources

    © 2026 Healthcare Facility Hub (healthcarefacilityhub.org). All rights reserved. This content is provided for professional reference and must be evaluated against current standards and local regulations.

    Standards Referenced: ASHRAE 170-2021, ISO 14644-1, FGI Guidelines (2022), NFPA 101 Life Safety Code, Joint Commission Accreditation Standards (Jan 2026 Edition), CMS Conditions of Participation.



  • Healthcare HVAC Commissioning: Testing, Balancing, and Ongoing Compliance Verification






    Healthcare HVAC Commissioning: Testing, Balancing, and Ongoing Compliance Verification



    Healthcare HVAC Commissioning: Testing, Balancing, and Ongoing Compliance Verification

    Published: March 18, 2026 | Category: HVAC Systems | Publisher: Healthcare Facility Hub

    Commissioning: The systematic process of testing, adjusting, and documenting healthcare HVAC system performance to ensure it meets design specifications, standards compliance, and operational requirements. Commissioning occurs at system startup and is followed by ongoing verification procedures to maintain compliance throughout facility operations.

    Healthcare HVAC Commissioning Overview

    Healthcare HVAC commissioning is a critical phase that bridges the gap between design intent and operational reality. ASHRAE 170-2021 specifies commissioning requirements, and Joint Commission Accreditation Standards (January 2026 Edition) require documented verification of HVAC system performance. Proper commissioning ensures that expensive investments in healthcare facility HVAC systems deliver their intended infection prevention and environmental control benefits.

    Commissioning Phases

    Healthcare HVAC commissioning typically occurs in three phases:

    1. Pre-Operational Phase: Visual inspection, component verification, and preliminary tests before operation
    2. Operational Phase: Performance testing, balancing, and adjustment under normal operating conditions
    3. Ongoing Verification: Periodic testing and documentation to maintain compliance throughout facility lifecycle

    Pre-Operational Inspection and Verification

    Before HVAC systems begin operation, a comprehensive inspection ensures all components are installed correctly and no construction defects exist.

    Visual Inspection Checklist

    • Ductwork: No gaps, loose connections, or debris; duct interiors clean; proper sealing and insulation
    • Air Handling Units: Filters installed correctly; coils clean; drain pans operational; vibration isolation pads in place
    • Dampers: All dampers operational; balancing dampers properly positioned; check valves functional
    • Fans: Rotation direction correct; no rubbing or binding; bearing temperatures normal
    • Diffusers and Grilles: Properly secured; adjustment mechanisms functional; no manufacturing debris
    • Sensors: Temperature sensors, humidity sensors, and pressure transducers installed and operational
    • Controls: Thermostats, damper actuators, and automatic controls responding to input
    • Fire and Safety: Smoke dampers operational; fire isolation dampers functional; emergency stops operational

    Ductwork Cleanliness Verification

    New ductwork frequently contains construction debris (insulation bits, metal shavings, dust). ASHRAE 170 requires ductwork to be cleaned before or after installation to prevent particulate contamination. Ductwork cleanliness can be verified by visual inspection or, for critical applications, through air quality testing after system startup.

    Testing and Balancing Procedures

    Testing and balancing (TAB) is the operational phase where technicians measure system performance and adjust components to match design specifications.

    Air Volume Measurement and Balancing

    Technicians measure supply and exhaust air volumes at each space to verify they match design values. Measurements are made using:

    • Anemometers: Hand-held instruments that measure air velocity in ductwork or at diffusers; multiple readings at each location ensure accuracy
    • Pitot Tubes: Connected to digital manometers to measure velocity pressure in ducts
    • Air Flow Hoods: Portable devices that capture all air from a diffuser or grille to measure total volume
    • Tracer Gas Methods: Advanced technique using SF6 tracer gas for complex ductwork configurations

    Pressure Relationship Verification

    Space Type Target Pressure Differential Measurement Method
    Operating Rooms +5-15 Pa (0.02-0.06 in. H2O) Digital manometer at wall-mounted ports
    Isolation Rooms -5-15 Pa (0.02-0.06 in. H2O) Digital manometer at wall-mounted ports
    ICU/Patient Rooms ±2-5 Pa Permanent or temporary pressure transducers
    Corridors Slightly negative to patient rooms Digital manometer

    Pressure Port Installation

    Permanent pressure monitoring ports should be installed in critical spaces during construction. Ports consist of small tubes extending into the space, connected to permanent pressure transducers. Temporary ports can be installed with tape-mounted tubing for commissioning measurements. Multiple ports (at different heights and locations) improve measurement accuracy.

    Particle Count Testing for Operating Rooms and Clean Spaces

    Operating rooms and other clean spaces are certified by measuring airborne particle concentration to verify ISO classification compliance. ISO 14644-1 specifies particle count methodology.

    Particle Count Measurement Protocol

    • Equipment: Optical particle counter capable of measuring 0.5 micron and larger particles
    • Sampling Points: Minimum 16 sampling points in a grid pattern throughout the space
    • Sampling Duration: At least 1 minute per point; longer sampling for statistical significance
    • Operating Conditions: All equipment operational, doors closed, normal activity level
    • Documentation: Particle counts recorded at each location; results compared to ISO classification limits

    ISO Classification Limits

    • ISO Class 5: Maximum 100,000 particles per cubic foot (0.5 µm+); typical for operating rooms
    • ISO Class 6: Maximum 1,000,000 particles per cubic foot (0.5 µm+)

    Temperature and Humidity Control Verification

    Commissioning includes verification that heating, cooling, humidification, and dehumidification systems maintain design parameters.

    Testing Procedures

    • Temperature: Measure at multiple points in each space using calibrated thermometers; verify system maintains setpoint ±2°F during normal operation and load changes
    • Humidity: Measure relative humidity at multiple locations; verify system maintains 30-60% RH in operating rooms and specified ranges in other spaces
    • Response Time: Document how quickly temperature and humidity respond to setpoint changes
    • Stability: Verify rate of temperature change is less than ±2°F per hour and humidity change less than ±5% per hour

    Filter and Air Cleanliness Testing

    HEPA and MERV-rated filters are verified during commissioning and require ongoing monitoring.

    Pre-Operational Filter Testing

    • Visual inspection for damage, proper sealing, and correct orientation
    • Integrity testing of HEPA filters using photometer (measures light transmission to detect leaks)
    • Pressure drop measurement across filter; baseline for future monitoring

    Ongoing Filter Monitoring

    • Visual Inspection: Monthly visual check for obvious damage or saturation
    • Pressure Drop Monitoring: Weekly or bi-weekly differential pressure readings; change filter when manufacturer threshold is reached
    • Bypass Potential: Electronic monitoring of differential pressure ensures filters are changed before bypass occurs

    Laminar Flow and Air Pattern Verification

    Operating rooms and other critical spaces require verification of laminar flow patterns.

    Smoke Testing

    Smoke testing visualizes air flow patterns. Smoke is introduced at various points in the space, and air movement is observed to confirm downward laminar flow from ceiling to floor exhaust. Observations should show:

    • Smoke moves downward from ceiling throughout the space
    • No upward or turbulent flow patterns
    • Smoke moves toward exhaust grilles without recirculation

    Air Velocity Mapping

    Anemometer measurements at multiple points (typically 4-9 points across ceiling) verify uniform downward air velocity of 0.3-0.5 feet per second. Significant velocity variations may indicate distribution ductwork problems or obstruction.

    Damper Operation and Control Verification

    All dampers must be tested to verify correct operation and response to control signals.

    Damper Testing Checklist

    • Manual dampers: Operate smoothly through full range; locking mechanisms functional
    • Motorized dampers: Respond to control signals; reach full open/close within specified time
    • Check dampers: Allow flow in one direction, block reverse flow
    • Balancing dampers: Used to fine-tune air distribution; locked in position after balancing
    • Smoke dampers: Functional; close upon smoke detection or manual signal

    Documentation and Commissioning Report

    Comprehensive documentation of commissioning is essential for Joint Commission compliance and ongoing maintenance.

    Required Documentation

    • Design Drawings and Specifications: As-built plans showing final installed configuration
    • Air Volume Measurements: Supply and exhaust CFM at each space; comparison to design values
    • Pressure Differentials: Measured pressure relationships between spaces
    • Temperature and Humidity: Readings from multiple locations and operating conditions
    • Particle Counts: ISO classification certification for operating rooms and clean spaces
    • Filter Testing: Baseline pressure drop and integrity test results
    • Equipment Performance: Fan performance curves, coil effectiveness, control system response
    • Commissioning Issues and Resolutions: Any problems identified and corrective actions taken
    • Signature and Seal: Final report signed by commissioning engineer; sealed where required by state engineering boards

    Ongoing Compliance Verification and Maintenance

    After initial commissioning, ongoing verification ensures healthcare HVAC systems maintain compliance throughout operational life. Joint Commission standards (2026 Edition) require documented verification of compliance.

    Annual Verification Program

    • Visual Inspection: Annual inspection of all HVAC components for damage, corrosion, or deterioration
    • Filter Management: Documentation of all filter changes with dates and pressures at change time
    • Pressure Relationship Spot-Checks: Annual or biennial measurement of pressure differentials in critical spaces
    • Temperature and Humidity Monitoring: Continuous or periodic monitoring with documentation of setpoint maintenance
    • Particle Count Certification: Annual or biennial certification of operating rooms; more frequent if concerns arise

    Preventive Maintenance Schedule

    A documented preventive maintenance program supports ongoing compliance:

    • Pre-filters: Change every 3-6 months or when pressure drop reaches manufacturer threshold
    • HEPA filters: Change every 6-12 months based on differential pressure monitoring
    • MERV filters: Change every 1-3 months depending on environmental conditions
    • Heating/cooling coils: Clean annually or as needed
    • Fan bearings: Lubricate per manufacturer schedule; monitor temperature
    • Dampers and actuators: Exercise monthly; repair or replace if sluggish

    Commissioning During Renovation and Re-commissioning

    When healthcare facilities undergo renovation or HVAC system upgrades, re-commissioning is required to verify continued compliance. Re-commissioning after major renovations should follow the same procedures as initial commissioning.

    Learn more about ASHRAE 170 design requirements and operating room HVAC systems.

    Frequently Asked Questions

    Q: Who should perform healthcare HVAC commissioning?

    A: Commissioning should be performed by qualified TAB contractors and commissioning engineers with healthcare facility experience. Many facilities retain an independent commissioning agent to oversee the process and verify contractor performance. Professional certifications (such as AABC TAB certification) indicate qualified technicians.

    Q: How long does healthcare HVAC commissioning typically take?

    A: Initial commissioning for a medium-sized hospital HVAC system typically takes 4-12 weeks depending on facility complexity. Operating rooms and critical care areas require more extensive testing and may extend the timeline. Planning should account for commissioning delays.

    Q: What is the cost of healthcare HVAC commissioning?

    A: Commissioning typically costs 3-8% of the total HVAC system cost. While significant, this investment prevents costly problems and ensures systems deliver intended benefits. Energy efficiency improvements from proper balancing often offset commissioning costs within 2-3 years.

    Q: Can operating rooms operate before commissioning is complete?

    A: No. Operating rooms should not be used for surgery until commissioning is complete and documented. Using an unverified operating room risks patient safety and creates liability. Pre-operational inspection may allow non-sterile activities while formal commissioning proceeds.

    Q: What should facilities do if ongoing particle counts exceed ISO Class 5?

    A: If particle counts exceed the ISO Class 5 limit, the operating room should be taken out of service pending investigation. Common causes include HEPA filter integrity loss, ductwork contamination, or poor housekeeping. Once the cause is corrected, re-certification is required before returning to service.

    Q: How often should pressure differentials be verified after commissioning?

    A: Many facilities verify pressure differentials annually or biennially with documented measurements. Changes in HVAC system performance (new dampers, filter replacements, control adjustments) may warrant spot-checks. Any changes in pressure differential should be investigated to identify root causes.

    Q: What is the difference between commissioning and routine maintenance?

    A: Commissioning is the initial verification that systems meet design specifications. Routine maintenance sustains that performance through filter changes, equipment lubrication, and inspections. Both are essential—commissioning establishes the baseline, and maintenance maintains it.

    Related Resources

    © 2026 Healthcare Facility Hub (healthcarefacilityhub.org). All rights reserved. This content is provided for professional reference and must be evaluated against current standards and local regulations.

    Standards Referenced: ASHRAE 170-2021, ISO 14644-1, AABC TAB Standards, FGI Guidelines (2022), Joint Commission Accreditation Standards (Jan 2026 Edition), NFPA 101 Life Safety Code.



  • CMS Conditions of Participation: Environment of Care Requirements for Hospitals






    CMS Conditions of Participation: Environment of Care Requirements for Hospitals


    CMS Conditions of Participation: Environment of Care Requirements for Hospitals

    Federal Standards, Compliance Requirements, and Best Practices

    Home > Regulatory Compliance > CMS CoPs Environment of Care

    Overview

    CMS Conditions of Participation (CoPs) establish federal requirements that Medicare-participating hospitals must meet to receive federal funding. The environment of care standards (42 CFR 482.22 for hospitals) require organizations to maintain safe, sanitary, and comfortable physical environments that support patient care and safety.

    Introduction to CMS Conditions of Participation

    CMS Conditions of Participation represent the federal minimum standards for healthcare quality and safety. Unlike state survey standards or accreditation standards, CMS CoPs carry direct financial consequences through Medicare reimbursement. Hospitals must maintain compliance continuously, not just during survey periods.

    The environment of care provisions specifically address the physical infrastructure, safety systems, and operational practices necessary to protect patients, staff, and visitors from harm. This foundational requirement supports all clinical operations and patient care delivery.

    Regulatory Authority and Scope

    • Federal regulation: 42 CFR Part 482 (Conditions of Participation for Hospitals)
    • Enforcement: Centers for Medicare & Medicaid Services (CMS) and State Survey Agencies
    • Applicability: All hospitals accepting Medicare and Medicaid patients
    • Compliance verification: Unannounced surveys by State Survey Agency representatives
    • Consequences for non-compliance: Termination of Medicare/Medicaid provider agreement, loss of federal funding

    Core Environment of Care Standards (42 CFR 482.22)

    The CMS environment of care rule establishes requirements across multiple domains of facility management and safety.

    Safety Program Requirements

    • Establish an integrated patient and worker safety program
    • Conduct comprehensive risk assessment of the physical environment
    • Develop written policies addressing safety hazards, environmental risks, and mitigation strategies
    • Establish mechanisms for reporting and investigating safety incidents and near-misses
    • Maintain documentation of all safety assessments, policies, and corrective actions
    • Provide staff training on safety procedures and hazard recognition

    Building Safety and Emergency Preparedness Standards

    • Maintain compliance with applicable building codes and fire codes (NFPA 101 Life Safety Code)
    • Conduct regular fire drills and safety inspections
    • Maintain emergency lighting, alarm systems, and fire suppression equipment
    • Establish emergency evacuation procedures and ensure staff competency
    • Develop and maintain comprehensive emergency operations plans (42 CFR 482.54)
    • Conduct emergency preparedness testing and training on an ongoing basis

    Sanitation and Infection Prevention Standards

    • Maintain clean and sanitary conditions throughout the facility
    • Implement evidence-based infection prevention and control protocols
    • Establish cleaning schedules and procedures for all areas, equipment, and supplies
    • Manage medical waste according to regulatory requirements
    • Maintain environmental monitoring for air quality, water quality, and other parameters as appropriate
    • Implement isolation precautions and maintain isolation rooms for infectious patients

    Utility System Management

    • Establish backup power systems (generator) with regular testing and maintenance
    • Maintain medical gas delivery systems with safety mechanisms and quality assurance
    • Ensure adequate water supply and management of water treatment systems
    • Maintain HVAC systems appropriate to facility needs and patient populations
    • Establish preventive maintenance programs for all critical infrastructure
    • Document utility system testing, maintenance, and repairs

    Equipment Management and Safety

    • Maintain inventory of all medical equipment and non-medical equipment affecting patient care
    • Conduct preventive maintenance on equipment according to manufacturer specifications
    • Remove unsafe or non-functional equipment from patient care areas
    • Maintain documentation of equipment maintenance, testing, and repairs
    • Establish procedures for handling malfunctioning equipment and reporting incidents
    • Ensure equipment operator competency through appropriate training

    Key Compliance Point

    CMS CoP compliance is mandatory and continuous. Unlike accreditation standards that require compliance at specific survey intervals, CoPs must be maintained every day. This means establishing sustainable processes and robust documentation systems, not just “getting ready for a survey.”

    Comparison: CMS CoPs vs. Joint Commission Standards

    While both CMS and Joint Commission establish healthcare facility standards, they differ in scope, timing, and enforcement:

    CMS Conditions of Participation

    • Federal minimum standards; mandatory for Medicare participation
    • Continuous compliance requirement
    • Enforced through unannounced surveys
    • Non-compliance results in loss of federal funding
    • More prescriptive in some areas; less detailed in others

    Joint Commission Standards

    • Voluntary accreditation; chosen by hospitals for quality improvement and competitive advantage
    • Scheduled triennial surveys (every three years)
    • More comprehensive and detailed standards across all operational areas
    • Non-compliance may result in loss of accreditation and Medicare Conditions of Coverage assumption
    • Greater emphasis on outcomes, patient safety culture, and continuous improvement

    Most hospitals must meet both CMS CoPs (federal requirement for Medicare) and Joint Commission standards (for accreditation and quality improvement). A comprehensive compliance program addresses both frameworks.

    Documentation and Compliance Evidence

    Successful CMS compliance depends on robust documentation and evidence of ongoing compliance. State Survey Agencies expect to find:

    Required Documentation

    • Written policies addressing all aspects of the environment of care and safety program
    • Results of comprehensive risk assessments, including updates as needed
    • Records of preventive maintenance for all equipment and infrastructure
    • Fire drill records with dates, participants, and observations
    • Emergency preparedness test results and after-action reports
    • Staff training records demonstrating competency on safety topics
    • Incident reports and investigations of safety concerns or near-misses
    • Corrective action plans addressing identified deficiencies
    • Meeting minutes from safety committees demonstrating ongoing oversight
    • Medical equipment inspection and maintenance records

    Documentation Best Practices

    • Maintain centralized documentation system for easy accessibility during surveys
    • Establish clear documentation standards and template usage across departments
    • Implement regular documentation audits to identify gaps or deficiencies
    • Train staff on proper documentation procedures and compliance expectations
    • Preserve historical documentation to demonstrate ongoing compliance over time

    Compliance Implementation Strategy

    Hospitals establishing or strengthening their CMS environment of care compliance program should adopt a systematic approach:

    Step 1: Baseline Assessment

    • Conduct comprehensive assessment against all CoP requirements
    • Identify compliance gaps and deficiencies
    • Prioritize gaps based on severity and risk to patients/staff
    • Estimate timelines and resources needed for remediation

    Step 2: Program Development

    • Develop or revise comprehensive safety program policy
    • Establish governance structure with clear accountability
    • Create detailed policies addressing all CoP requirements
    • Develop procedures for routine monitoring and corrective action

    Step 3: Implementation and Training

    • Communicate new or revised policies to all affected staff
    • Provide targeted training for managers and frontline staff
    • Establish monitoring systems to track compliance with new procedures
    • Create escalation procedures for identified deficiencies

    Step 4: Monitoring and Sustainment

    • Conduct routine safety audits and inspections
    • Review incident and near-miss reports monthly
    • Track compliance metrics and report to leadership
    • Update policies as needed based on organizational changes or new regulatory guidance

    Internal Resources for Regulatory Compliance

    Expand your regulatory compliance knowledge with these related articles:

    Frequently Asked Questions

    Q: What happens if we fail to meet CMS Conditions of Participation?

    CMS can impose a range of sanctions, from immediate corrective action plans to loss of Medicare provider agreement. This directly impacts hospital funding and operations. The CMS website provides detailed information on survey deficiency levels and enforcement actions.

    Q: How often are CMS surveys conducted?

    CMS surveys are unannounced and generally occur every two to three years for compliant hospitals. However, hospitals with identified deficiencies may be surveyed more frequently. Some states conduct more frequent surveys than the federal baseline.

    Q: Can we use Joint Commission accreditation status to satisfy CMS requirements?

    Joint Commission accreditation carries “deemed status” for Medicare purposes, meaning accreditation satisfies most CMS Conditions of Participation. However, hospitals still must maintain CMS compliance in all areas, including some environment of care elements not fully addressed by accreditation.

    Q: What building codes must we follow for CMS compliance?

    Hospitals must comply with the National Fire Protection Association (NFPA) 101 Life Safety Code and the International Building Code (IBC), as well as applicable state and local building codes. The most restrictive requirement applies.

    Q: Are there specific CMS requirements for medical equipment management?

    Yes. 42 CFR 482.22 requires hospitals to maintain medical equipment in safe, operable condition. Hospitals must establish preventive maintenance programs, document maintenance activities, and ensure operators are competent. Equipment logs and maintenance records are key compliance documentation.

    Q: How should we organize our documentation for CMS survey readiness?

    Organize documentation by CoP section (Safety Program, Emergency Preparedness, Utilities, Equipment, etc.). Maintain clear, organized files with policies, procedures, inspection records, maintenance logs, and training documentation. During surveys, inspectors will request specific documentation, so easy access is critical.

    Q: Do CMS environment of care requirements apply to non-hospital settings?

    CMS CoPs are specific to each facility type. Long-term care facilities have different requirements (42 CFR 483), as do critical access hospitals, rehabilitation facilities, and other provider types. Each must comply with the CoPs applicable to their facility category.

    Q: What role should the Environmental Committee play in CMS compliance?

    While not explicitly required by CMS, an Environmental Committee provides essential governance oversight. Meeting regularly (at least quarterly), reviewing incidents and near-misses, monitoring compliance metrics, and making recommendations strengthens your overall compliance program and demonstrates to surveyors that environment of care is a priority.

    © 2026 Healthcare Facility Hub (healthcarefacilityhub.org). All rights reserved.

    Published: March 18, 2026 | Category: Regulatory Compliance



  • Healthcare Regulatory Compliance: The Complete Professional Guide (2026)

  • Healthcare Construction and Renovation: ICRA, ILSM, and Infection Control During Projects






    Healthcare Construction and Renovation: ICRA, ILSM, and Infection Control During Projects




    Home >
    Facility Management >
    Healthcare Construction and Renovation

    Healthcare Construction and Renovation: ICRA, ILSM, and Infection Control During Projects

    Published: March 18, 2026 | Category: Facility Management | Publisher: Healthcare Facility Hub

    Introduction: Managing Construction Risk in Active Healthcare Environments

    Healthcare construction and renovation projects present unique challenges: work must proceed in occupied facilities with vulnerable patient populations while maintaining environmental compliance and infection prevention standards. Under Joint Commission’s Accreditation 360 framework (effective January 1, 2026), the unified Physical Environment (PE) chapter consolidates construction standards with infection control and life safety requirements, demanding coordinated planning between construction management, infection prevention, and facility engineering teams.

    Infection Control Risk Assessment (ICRA): A structured evaluation process conducted during construction and renovation planning to identify potential infection risks, determine the level of environmental controls required (standard, enhanced, or maximum precautions), and establish specific protection measures to prevent transmission of pathogens to patients, staff, and visitors during the construction period.

    This comprehensive article addresses the complete framework for managing healthcare construction projects with emphasis on infection control risk assessment, interim life safety measures, and regulatory compliance under current standards including FGI Guidelines, NFPA 101, ASHRAE 170, and CMS Conditions of Participation.

    Infection Control Risk Assessment (ICRA) Framework

    ICRA Purpose and Regulatory Context

    ICRA is required by:

    • Joint Commission PE chapter: Mandates ICRA for all construction and major renovation projects
    • CMS Conditions of Participation: Requires infection prevention measures during construction; ICRA is primary planning tool
    • CDC guidelines: Provide evidence-based recommendations for construction-related infection prevention
    • AORN (Association of periOperative Nurses): Standards for operating room construction and environmental controls
    • FGI Guidelines for Design and Construction of Health Care Facilities: Comprehensive design standards that inform ICRA risk levels

    ICRA Team Composition

    Effective ICRA requires multidisciplinary collaboration including:

    • Infection Prevention Specialist: Leads ICRA process, identifies infection risks, recommends control measures
    • Facility Manager/Engineer: Provides technical expertise on construction methods, utility impacts, and feasibility
    • Construction Manager: Explains construction sequencing, timeline, and contractor capabilities
    • Clinical Leadership: Represents departments affected by construction; identifies operational impacts and patient population concerns
    • Occupational Health/Safety: Addresses worker health and safety; identifies hazards requiring mitigation
    • Environmental Services: Identifies cleaning and contamination control challenges
    • Risk Management/Compliance: Ensures regulatory requirements are met; documents decisions for accreditation purposes

    ICRA Risk Level Determination

    The ICRA process identifies three levels of construction-related infection risk, each requiring progressively more stringent controls:

    Category 1: Standard Precautions

    Characteristics: Work in non-patient care areas, non-critical support areas, or exterior work with no direct connection to occupied clinical spaces

    Minimum Controls:

    • Standard dust and debris management practices
    • Separation of construction area from patient care spaces
    • Basic housekeeping and waste management
    • Work confined to designated hours when possible

    Examples: Renovation of administrative offices, exterior painting, parking lot expansion, renovation of empty patient rooms (before occupancy)

    Category 2: Enhanced Precautions

    Characteristics: Work in or adjacent to occupied patient care areas, or work that creates dust and debris generation in areas with patient vulnerability risk

    Required Controls:

    • Dust barriers and negative air pressure control in construction area
    • HEPA filtration of air returning to occupied spaces
    • Barrier protection at unit entrances
    • Restricted access to construction zone
    • Enhanced cleaning protocols in adjacent patient care areas
    • Specialty contractor requirements (qualifications, clean practices)
    • Work timing coordination with clinical operations

    Examples: Renovation of hospital corridors with adjacent patient rooms, renovation of support areas accessed by patients (bathrooms, waiting areas), renovation of staff work areas affecting patient care operations

    Category 3: Maximum Precautions

    Characteristics: Work in high-risk areas occupied by immunocompromised patients; areas where airborne transmission risk is highest

    Required Controls:

    • Maximum containment: sealed, isolated construction zone with negative pressure
    • All air exhausted to exterior; no recirculation to occupied spaces
    • HEPA filtration of all air supplies and exhausts
    • Specialized contractor requirements with infection control expertise
    • Real-time air quality monitoring
    • Enhanced access control and personnel decontamination
    • Potential need to relocate immunocompromised patients
    • Coordination with infection prevention and occupational health

    Examples: Operating room renovation, hematology/oncology unit renovation (where transplant or chemotherapy patients are treated), intensive care unit renovation, renovation of spaces housing immunocompromised patient populations

    Related Article: Infection Control Risk Assessment: ICRA Matrix, Construction Protocols, and Barrier Requirements – Detailed exploration of ICRA methodology and barrier systems.

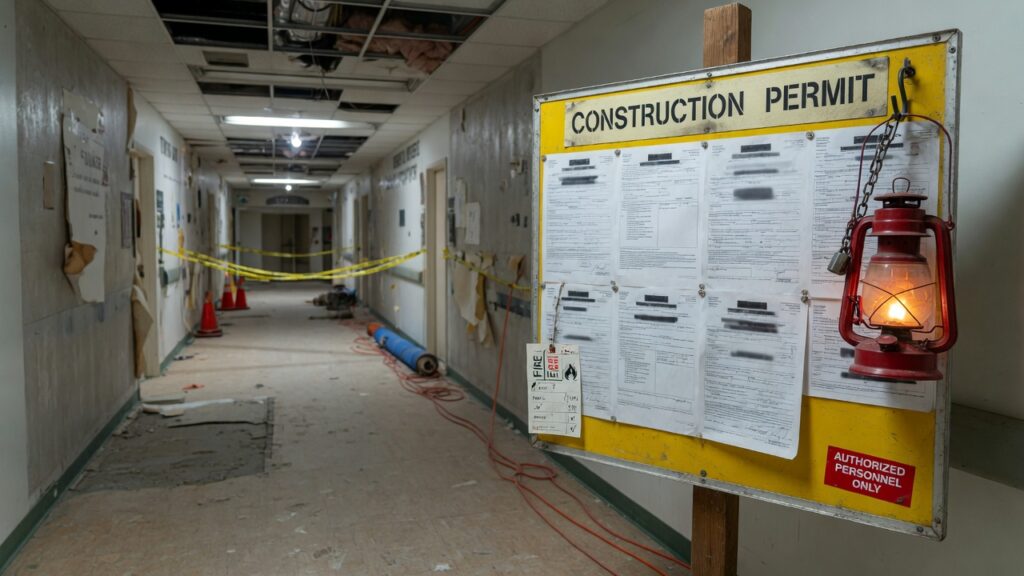

    Interim Life Safety Measures (ILSM)

    ILSM Definition and Regulatory Requirement

    During construction, healthcare facilities must maintain compliance with life safety standards despite temporary disruptions to building systems and configurations. ILSM are temporary measures that compensate for compromised life safety systems during construction activities.

    Interim Life Safety Measures (ILSM): Temporary protective systems, procedures, and practices implemented during construction to maintain safety levels equivalent to code-compliant permanent installations when normal life safety systems are temporarily disabled, altered, or unavailable due to construction activities.

    Key ILSM Components

    Fire Safety During Construction

    Construction projects frequently compromise fire safety systems. ILSM must address:

    • Fire detection and alarm systems: If permanent systems are disabled, temporary portable detection or enhanced staffing for fire watch duties
    • Fire suppression capacity: Portable fire extinguishers positioned throughout construction area; if sprinklers are disabled, enhanced fire watch or temporary sprinkler systems
    • Emergency egress: Temporary pathways maintained that provide equivalent safety to permanent exits; signage and lighting for temporary routes
    • Construction material fire load: Combustible materials storage and management; daily housekeeping to prevent fire fuel accumulation
    • Hot work permit program: If grinding, cutting, or welding occurs, formal hot work permits and continuous fire watch during and after hot work activities

    Smoke and Odor Control

    Construction generates dust, fumes, and odors that can spread to patient care areas:

    • Air curtains or negative pressure systems at barrier boundaries
    • HEPA filtration of exhausted air
    • Carbon filtration for odor control in adjacent areas
    • Regular cleaning of HVAC filters and ductwork
    • Temporary ductwork isolation when permanent HVAC is compromised

    Utility System Protection

    Construction can damage or compromise critical utility systems:

    • Medical gas systems: Line location verification before trenching/excavation; pressure monitoring; inspection protocols
    • Electrical systems: Arc flash assessments; temporary distribution for construction; protection of critical circuits
    • Water systems: Backflow prevention devices; isolation of construction water from patient care supplies
    • Emergency power: Verification that generator capacity remains adequate; fuel supply monitoring; load testing schedules

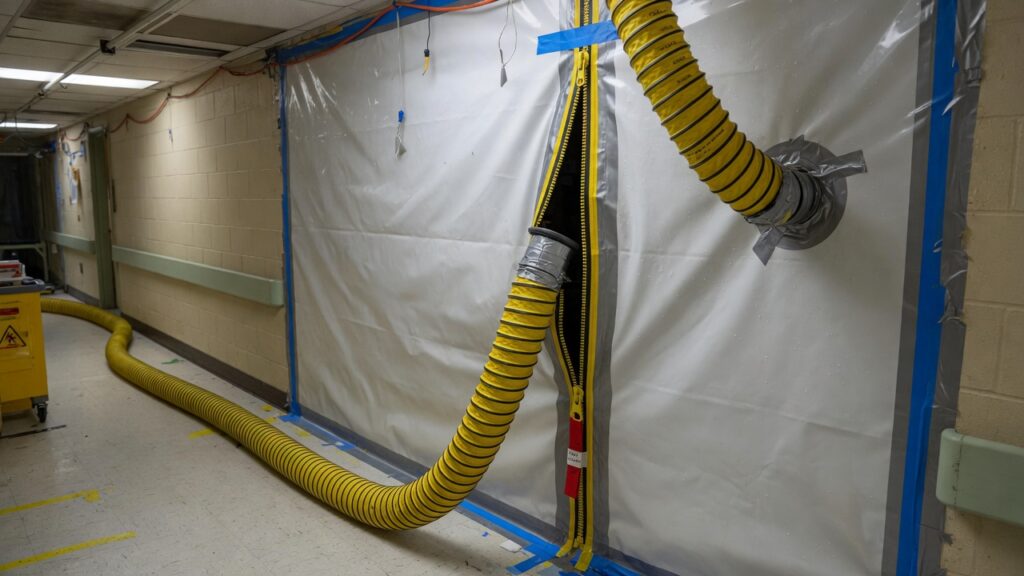

    Temporary Barriers and Enclosures

    Physical containment of construction is essential:

    • Floor-to-ceiling dust barriers (6-mil polyethylene minimum)
    • Sealed seams and overlapped joints to prevent dust migration
    • Access control: restricted entry points with sign-in/sign-out procedures
    • Vestibule or airlock configuration where negative pressure control is required
    • Visual inspection protocols to verify barrier integrity

    ILSM Documentation and Inspection

    Effective ILSM requires rigorous documentation and oversight:

    • ILSM plan development: Documented plan addressing all life safety impacts; approved by facility administration, infection prevention, and occupational health
    • Daily inspection logs: Construction supervisor verifies ILSM implementation daily; records maintained for compliance documentation
    • Regulatory inspections: Health department and/or state building officials may conduct inspections; facilities must be prepared to demonstrate ILSM compliance
    • Incident reporting: Any ILSM failures (barrier breaches, air pressure loss, system failures) must be documented and addressed immediately
    • Training documentation: All construction personnel must be trained on safety requirements; training records maintained

    Construction Planning and Coordination

    Pre-Construction Phase Activities

    Project Definition and Risk Identification

    • Clinical and operational impact assessment
    • ICRA assessment (documented in ICRA matrix)
    • ILSM development and approval
    • Infection prevention and occupational health coordination meeting
    • Utility impact analysis (electrical loads, water usage, air flow impacts)
    • Schedule and phasing analysis to minimize clinical disruption

    Contractor Selection and Requirements

    Healthcare construction requires specialized contractor expertise:

    • Contractor qualifications: Experience with healthcare projects, understanding of infection control requirements, familiarity with life safety standards
    • Infection control training requirement: All construction personnel receive orientation to infection prevention protocols, ILSM requirements, and housekeeping expectations
    • Safety certifications: OSHA compliance; workers’ compensation insurance; background checks where required
    • Performance standards: Contract specifications for dust control, debris management, work hours, and site cleanliness
    • Compliance incentives: Financial incentives/penalties for meeting/exceeding environmental control performance

    During-Construction Phase Management

    Daily Operations and Oversight

    • Construction supervisor: On-site daily; responsible for ILSM compliance, worker safety, and site management
    • Facility liaison: Hospital staff member coordinating with construction team; troubleshooting issues; communicating with clinical departments
    • Infection prevention rounds: Weekly or more frequent visits to assess barrier integrity, dust control, and HVAC impacts
    • Air pressure monitoring: For Category 2 and 3 projects, continuous or daily monitoring with documentation
    • Patient and staff communication: Regular updates about construction progress, anticipated disruptions, and precautions being taken

    Utility Management During Construction

    Construction often requires temporary disruption of utilities that support patient care:

    • Advance notification: Clinical departments notified of outages; patients requiring affected services relocated as necessary
    • Backup systems: Temporary utilities provided if permanent systems are disrupted (temporary HVAC, portable generators, temporary water systems)
    • System restoration verification: Testing and validation that utilities function correctly when permanent systems return to service
    Related Article: Healthcare Facility Maintenance Programs: Preventive, Predictive, and Reliability-Centered Strategies – Learn facility maintenance strategies essential for post-construction compliance.

    Regulatory Compliance and Accreditation Standards

    FGI Guidelines for Healthcare Facility Design and Construction

    The FGI Guidelines provide comprehensive standards that inform construction planning:

    • Infection prevention design standards: HVAC requirements, isolation room specifications, cleaning accessibility, material durability
    • Life safety requirements: Exit placement, fire separation requirements, emergency system specifications
    • Equipment and infrastructure standards: Medical gas systems, utility capacity, technology infrastructure requirements

    ASHRAE 170: Ventilation of Health Care Facilities

    ASHRAE 170 provides detailed ventilation standards critical during construction planning:

    • Air change rates: Specific requirements for different room types (ORs require higher air change rates than general patient rooms)
    • Pressure relationships: Operating rooms and isolation rooms must maintain positive pressure; certain support areas require negative pressure
    • Filtration requirements: HEPA filtration requirements for sensitive areas
    • Duct cleaning and commissioning: After construction, HVAC systems must be cleaned and commissioned to verify performance

    NFPA 101 Life Safety Code

    NFPA 101 addresses construction sequencing and temporary conditions:

    • Temporary partitions: Must meet fire rating requirements; cannot reduce egress capacity below code minimum
    • Emergency lighting: Temporary routes require adequate lighting; battery backup systems needed during power transitions
    • Sprinkler system maintenance: Temporary disconnection of sprinklers in construction areas requires compensating fire safety measures

    Post-Construction Commissioning and Validation

    Functional Performance Testing

    Upon construction completion, systems must be tested to verify compliance with design specifications:

    • HVAC commissioning: Air flow verification, pressure relationship testing, duct leakage testing, filter performance verification
    • Medical gas system testing: Pressure verification, flow testing, cross-contamination testing per CMS requirements
    • Electrical system testing: Circuit verification, grounding testing, emergency system load testing
    • Fire safety system testing: Alarm system activation, suppression system activation, emergency egress lighting verification
    • Cleaning and decontamination: Post-construction cleaning per infection prevention protocols; verification of cleanliness before occupancy

    Infection Prevention Sign-Off

    Infection prevention staff must approve spaces for occupancy:

    • Visual inspection for cleanliness and proper construction completion
    • Verification that HVAC, utility systems, and other infrastructure meet design specifications
    • Confirmation that environmental controls support intended clinical function
    • Review of any modifications or deviations from original ICRA plan

    Frequently Asked Questions

    Q: When is ICRA required, and can we skip it for minor work?

    A: Joint Commission requires ICRA for any construction or major renovation. Even minor work may trigger ICRA requirements if it involves occupied patient care areas or could generate dust/debris. The ICRA process itself is brief for truly minimal-risk projects, but documented risk assessment is required. When in doubt, conduct ICRA—documentation demonstrates compliance and risk-based decision-making.

    Q: What should we do if a barrier breach occurs during a Category 2 or 3 construction project?

    A: Immediately halt construction activities in the affected area. Assess the extent and duration of the breach. Notify infection prevention and clinical leadership. Depending on severity and duration, may require: temporary barrier repair, enhanced cleaning of adjacent areas, increased air monitoring, or temporary relocation of immunocompromised patients. Document the incident, root cause, and corrective actions. Review ILSM to prevent recurrence.

    Q: How should we handle medical gas line relocation during renovation?

    A: Medical gas line work requires certified medical gas installers per CMS regulations. Before work begins: verify exact line location (may require ultrasound or X-ray), ensure appropriate shutoff procedures, plan alternative gas supplies if needed, isolate the affected area, perform line integrity testing after relocation, and conduct a complete medical gas system survey per CMS requirements before returning to service. Documentation of all work and testing is required.

    Q: What is the difference between Category 1, 2, and 3 ICRA, and how is it determined?

    A: Category determination is based on the location of construction relative to patient care, the patient population’s vulnerability, and the risk of airborne transmission. Category 1 is non-patient care areas; Category 2 is areas adjacent to patient care or with vulnerable populations; Category 3 is immunocompromised patient areas or high-risk procedures (ORs). The ICRA team reviews project scope, patient population, construction methods, and facility layout to assign appropriate category and required controls.

    Q: How do we maintain HVAC performance during construction when utility systems are compromised?

    A: Temporary HVAC systems can be rented or installed to maintain air quality during permanent system disruption. Portable air handling units with HEPA filtration can maintain negative or positive pressure in construction zones or adjacent clinical areas. The construction plan should identify critical HVAC support areas and arrange for temporary systems if permanent systems are unavailable during construction. Coordinate timing to minimize impact on patient care operations.


  • Healthcare Facility Management: The Complete Professional Guide (2026)

  • Infection Control Risk Assessment: ICRA Matrix, Construction Protocols, and Barrier Requirements






    Infection Control Risk Assessment: ICRA Matrix, Construction Protocols, and Barrier Requirements




    Home >
    Infection Control >
    ICRA Risk Assessment

    Infection Control Risk Assessment: ICRA Matrix, Construction Protocols, and Barrier Requirements

    Published: March 18, 2026 | Category: Infection Control | Publisher: Healthcare Facility Hub

    Introduction: ICRA as Strategic Infection Prevention Tool

    Infection Control Risk Assessment (ICRA) represents a cornerstone infection prevention strategy in healthcare facility design, renovation, and construction activities. ICRA is a structured process for identifying infection transmission risks during construction projects and implementing proportionate protective measures to prevent transmission of pathogens to vulnerable patients, healthcare workers, and visitors. Under Joint Commission’s Accreditation 360 framework (effective January 1, 2026), ICRA is now explicitly integrated into the unified Physical Environment (PE) chapter requirements, emphasizing the direct connection between facility construction management and infection prevention outcomes.

    Infection Control Risk Assessment (ICRA): A systematic, multidisciplinary evaluation process that identifies potential infection transmission risks associated with construction, renovation, and maintenance activities in healthcare facilities. ICRA determines the level of environmental controls required to prevent airborne, droplet, and contact transmission of pathogens during construction periods.

    This comprehensive article addresses ICRA methodology, the ICRA matrix framework, category determination, barrier systems, and best practices for implementing ICRA in diverse healthcare settings aligned with current standards including CDC Guidelines for Environmental Infection Control, FGI Guidelines, ASHRAE 170, and CMS Conditions of Participation.

    ICRA Methodology and Process Framework

    Multidisciplinary Team Composition

    Effective ICRA requires coordinated input from multiple disciplines:

    • Infection Prevention Professional: Leads ICRA process; identifies infection risks; recommends control measures based on evidence and standards
    • Facility/Engineering Leadership: Provides technical expertise on construction methods, HVAC implications, utility impacts, and feasibility of control measures
    • Construction/Project Manager: Explains construction sequence, timeline, contractor capabilities, and potential implementation challenges
    • Clinical Leadership from Affected Areas: Represents patient population, clinical workflow, and identifies operational impacts and patient vulnerability factors
    • Occupational Health and Safety: Identifies worker health hazards and recommends protective measures for construction personnel
    • Environmental Services Director: Addresses housekeeping and contamination control challenges; identifies cleaning protocol modifications needed during construction

    ICRA Assessment Process Steps

    Step 1: Project Definition and Scope Analysis

    • Identify exact work location(s) and adjacent areas
    • Describe construction methods and equipment to be used
    • Estimate project duration and work sequencing
    • Identify utilities that will be affected (HVAC, water, electrical, medical gas)
    • Determine if permanent building systems will be disabled or compromised

    Step 2: Patient Population Assessment

    • Identify patient types in affected and adjacent areas (immunocompromised vs. general population)
    • Assess vulnerability to infection (oncology/hematology patients, transplant recipients, ICU patients are at higher risk)
    • Evaluate contact between construction area and patient care activities
    • Determine if construction occurs during patient occupancy vs. vacant areas

    Step 3: Infection Transmission Risk Identification

    • Identify potential sources of contamination (dust, fungi, bacteria from construction)
    • Determine transmission routes (airborne, droplet, contact)
    • Evaluate probability of exposure to vulnerable patients or immunocompromised populations
    • Consider specific pathogens of concern (Aspergillus, Legionella, antibiotic-resistant organisms, etc.)

    Step 4: Category Assignment and Control Determination

    • Assign ICRA category (1, 2, or 3) based on risk assessment
    • Determine specific control measures required for assigned category
    • Identify barriers, HVAC controls, monitoring requirements, and work practice modifications
    • Document rationale for category assignment and control selection

    Step 5: Implementation Planning and Oversight

    • Develop detailed ICRA plan with specific control measures, responsible parties, and timelines
    • Communicate plan to all stakeholders (construction team, clinical staff, facility personnel)
    • Establish monitoring and inspection schedules
    • Prepare incident response procedures for control failures

    Step 6: Monitoring, Documentation, and Adjustment

    • Conduct daily construction supervisor inspections; weekly infection prevention audits
    • Monitor air pressure in construction zones and adjacent areas
    • Document all inspections, test results, incidents, and corrective actions
    • Adjust controls if risk factors change or control failures occur

    ICRA Category Matrix and Control Requirements

    Category 1: Standard Precautions

    Characteristics: Work in non-patient care areas, non-critical support areas, or areas with minimal infection transmission risk to vulnerable patients

    Applicable Situations:

    • Work in administrative offices or non-clinical areas
    • Exterior work with no direct air, water, or structural connection to occupied clinical spaces
    • Work in vacant patient rooms not scheduled for occupancy during construction period
    • Renovation of bathrooms/break rooms in non-clinical areas
    • Parking lot, entrance, or building envelope renovation

    Minimum Required Controls:

    Control Element Requirement
    Physical barriers Basic separation from patient care areas; doors closed to contain dust
    Dust management Standard housekeeping; daily dust removal from work areas
    Air management No special HVAC requirements; standard ventilation adequate
    Work hours Preference for work during standard business hours, but not required
    Contractor requirements Basic contractor orientation; understanding of infection control principles
    Monitoring Periodic visual inspection of construction area and adjacent spaces
    Category 1 Example: Renovation of hospital administrative offices is located remotely from patient care areas. Construction involves interior wall removal and office reconfiguration. HVAC system serves administrative area only, with no connection to clinical spaces. No vulnerable patient populations occupy adjacent areas. Category 1 designation with standard dust control and basic housekeeping practices required.

    Category 2: Enhanced Precautions

    Characteristics: Work in or adjacent to occupied patient care areas, work that generates significant dust/debris in areas with patient vulnerability, or work that disrupts utility systems supporting patient care

    Applicable Situations:

    • Renovation of hospital hallways or corridors with adjacent patient rooms
    • Renovation of support areas accessed by ambulatory patients (bathrooms, waiting rooms, gift shops)
    • Renovation of staff work areas in occupied clinical units (nurse stations, medication storage, break rooms)
    • Renovation affecting HVAC supply/return in occupied patient care areas
    • Work above suspended ceilings in occupied patient care areas
    • Water line or medical gas line renovation in clinical areas

    Required Controls:

    Control Element Requirement
    Physical barriers Floor-to-ceiling dust barriers (6-mil polyethylene); sealed seams; controlled access points
    Air management Negative air pressure in construction zone (using portable HEPA units); HEPA filtration of air returning to occupied spaces
    Barrier maintenance Daily visual inspection of barrier integrity; immediate repair of any breaches
    Dust suppression Wet cleaning methods; plastic sheeting over surfaces; local exhaust during dust-generating activities
    HVAC coordination Isolation of construction area from patient care HVAC; temporary ductwork or air handling as needed
    Work hours Preference for work during evening/night hours or weekends when patient census is lower; avoid peak clinical hours
    Contractor requirements Specialty contractor with healthcare construction experience; infection control training mandatory
    Monitoring Air pressure monitoring during work hours; daily construction supervisor inspection; weekly infection prevention audit
    Housekeeping Enhanced cleaning protocols in adjacent patient care areas; containment of dust migration
    Related Article: Healthcare Construction and Renovation: ICRA, ILSM, and Infection Control During Projects – Complete guide to construction planning including ICRA implementation.

    Category 3: Maximum Precautions

    Characteristics: Work in high-risk areas occupied by severely immunocompromised patients; areas where infection transmission risk is highest and patient consequences of infection are most severe

    Applicable Situations:

    • Operating room renovation during active surgical schedule or scheduled patient surgeries
    • Hematology/oncology unit renovation with patients undergoing chemotherapy or stem cell transplantation
    • Intensive care unit (ICU) renovation with critically ill patients
    • Bone marrow/stem cell transplant unit renovation
    • Pediatric ICU or neonatal ICU renovation
    • Work in areas housing patients with severe immunosuppression (advanced HIV/AIDS, post-transplant, etc.)

    Required Controls:

    Control Element Requirement
    Physical barriers Complete isolation: sealed construction zone with no direct connection to patient care spaces; plastic sheeting floor to ceiling with sealed seams
    Air management Negative air pressure in construction zone; all air exhausted to exterior; no recirculation to occupied spaces; HEPA filtration on all exhausts
    Air quality monitoring Real-time air pressure monitoring; particle count monitoring during dust-generating activities; daily documentation
    Access control Severely restricted access to construction zone; sign-in/sign-out log; designated pathway from construction to exterior
    Personnel decontamination Protective equipment (respirators, gowns, gloves) for construction personnel working inside barriers; decontamination procedures upon exit
    Dust suppression Maximum dust control: wet methods, HEPA vacuum only, local exhaust capture, minimal hand tools (avoid power tools when possible)
    Contractor requirements Highly specialized contractor with healthcare construction expertise; infection control training and competency verification required
    Work timing Strategic coordination with clinical operations; possible temporary patient relocation to adjacent units during construction
    Monitoring Continuous or multiple daily air pressure monitoring; daily infection prevention supervisor inspection; real-time particle monitoring during work
    Incident protocol Immediate breach response protocol; immediate notification of clinical leadership; documentation required
    Category 3 Example: Operating room renovation is required while surgical schedule continues in adjacent ORs. Immunocompromised post-transplant patients may require procedures. Category 3 designation requires maximum containment with negative air pressure, HEPA exhausts, and real-time monitoring. Complete physical isolation prevents any possibility of dust or air contamination reaching adjacent operating rooms.

    Barrier Systems and Physical Containment

    Dust Barrier Construction and Specifications

    Physical barriers are the foundation of infection control during construction. Proper barrier construction is essential for effectiveness:

    Barrier Material Specifications

    • Polyethylene sheeting thickness: Minimum 6-mil (0.006 inch) polyethylene; thicker (10-mil) preferred for durability
    • Flame resistance: Barriers should be flame-resistant in areas where hot work (welding, grinding) may occur
    • Visibility: Clear sheeting preferred for construction safety; allows visual inspection for integrity
    • Sealing and overlap: Seams sealed with tape (duct tape or specialty polyethylene-compatible tape); 6-inch minimum overlap at seams

    Barrier Configuration Strategies

    Single-barrier approach: Polyethylene sheeting around construction zone perimeter; adequate for Category 1 and basic Category 2 work

    Double-barrier approach: Two layers of sheeting with 12-inch air gap between; used for Category 2 work with higher risk or air pressure requirements

    Vestibule configuration: Entrance anteroom with sealed doors and controlled access; used for Category 2 and 3 work; provides access control and preliminary decontamination

    Negative pressure enclosure: Fully sealed construction zone with mechanical negative pressure; maximum containment for Category 3 work; requires portable HEPA units or ductwork connection to exterior

    Air Management and Pressure Control

    Air management is critical for preventing dust and contamination migration:

    • Negative air pressure: Construction zone pressure should be negative relative to adjacent spaces; 0.02-0.05 inch water pressure difference target; prevents outward air flow from construction area
    • Air changes: 4-6 complete air changes per hour typical for Category 2 work; can be achieved with portable HEPA units
    • HEPA filtration: All air returning to occupied spaces must pass through HEPA filters (99.97% efficiency for 0.3-micron particles)
    • Exhaust routing: For Category 2, air can be exhausted back to occupied spaces through HEPA filters; for Category 3, must be exhausted to exterior
    • Monitoring equipment: Manometers or electronic pressure monitors verify negative pressure maintenance; data logged daily
    Related Article: Environmental Services and Terminal Cleaning: Evidence-Based Protocols for Healthcare Facilities – Learn cleaning protocols for construction areas and post-construction decontamination.

    Monitoring and Compliance Verification

    Daily Construction Supervision

    Daily oversight is essential for ICRA compliance:

    • Construction supervisor responsibilities: On-site daily; verifies ICRA control implementation; documents compliance; manages daily operations within ICRA plan
    • Inspection checklist: Daily visual inspection of barriers (integrity, sealing, cleanliness), dust control measures, air pressure readings, work area housekeeping
    • Documentation: Daily logs recording inspection results, air pressure readings, work performed, weather conditions, any deviations or incidents
    • Corrective actions: Immediate repair of barrier breaches, pressure loss, or other control failures; documentation of corrective action taken

    Infection Prevention Audits

    Regular infection prevention assessment ensures ongoing compliance:

    • Frequency: Weekly for Category 2 and 3 projects; biweekly for Category 1 projects
    • Assessment scope: Physical barrier integrity, air pressure verification, dust suppression effectiveness, contractor compliance, housekeeping, adjacent area cleanliness
    • Documentation: Detailed audit reports; identification of any deficiencies; documentation of corrective actions required
    • Communication: Regular communication with construction team regarding audit findings; collaborative problem-solving for control challenges

    Air Quality Monitoring

    For Category 2 and 3 projects, air quality monitoring provides objective verification of control effectiveness:

    • Particle count monitoring: Use of portable particle counters to measure dust levels in construction zone and adjacent areas; baseline and periodic measurements
    • Pressure monitoring: Continuous or multiple daily measurements of air pressure differential; documentation and trending
    • Spore monitoring: For high-risk areas (ORs, immunocompromised patient units), fungal spore sampling during and after construction; baseline and final clearance samples
    • Action thresholds: Predetermined levels that trigger immediate corrective action if exceeded; alert construction team and clinical leadership immediately

    Special Considerations and Challenges

    Renovation During Active Operations

    Construction in occupied facilities creates unique challenges:

    • Reduced operational time: Construction must often be confined to evenings, nights, or weekends; impacts contractor productivity and cost
    • HVAC complexity: Permanent systems continue operating; temporary systems must be carefully integrated to prevent contamination
    • Patient care continuity: Critical infrastructure (power, water, gas) may require temporary relocation of patients or services
    • Enhanced monitoring: More frequent air quality monitoring and barrier inspection needed during active operations

    Utility System Impacts

    Construction affecting utility systems requires special attention:

    • Water system renovation: Potential Legionella risk during line disruption; flushing and microbiologic testing required before resumption of patient use
    • HVAC system renovation: Potential contamination during ductwork renovation; duct cleaning and HVAC commissioning required post-construction
    • Medical gas lines: Renovation must use certified medical gas installers; line integrity testing after completion; system survey per CMS requirements
    • Electrical systems: Power disruptions may affect medical equipment, temperature control, or life safety systems; backup power coordination required

    Frequently Asked Questions

    Q: How is ICRA category determined, and who makes that decision?

    A: ICRA category is determined collaboratively by the ICRA team (infection prevention, facility management, construction management, clinical leadership) based on: (1) construction location and proximity to patient care areas, (2) patient population vulnerability, (3) potential for dust/debris generation, (4) HVAC system impacts, (5) utility system disruption. Category 1 is non-patient care areas; Category 2 is adjacent to patient care or vulnerable populations; Category 3 is immunocompromised patient areas. Documentation of category rationale is essential for accreditation compliance.

    Q: What should we do if a barrier breach occurs during Category 2 construction?

    A: Immediately halt work in the affected area. Assess the breach location, size, and duration of exposure. Notify infection prevention, facility management, and clinical leadership immediately. Determine if adjacent patient areas were affected. If breach was brief and limited in scope, barrier repair may be sufficient. If prolonged or affecting clinical areas, enhanced cleaning of adjacent spaces may be required. Document the incident, corrective actions, and reassess if additional controls are needed. Review construction procedures to prevent recurrence.

    Q: What are the typical costs of implementing Category 2 and 3 ICRA controls?

    A: Category 2 costs typically include portable HEPA units ($200-500/day rental), barrier materials ($1,000-3,000 depending on area size), and additional monitoring/inspection ($500-1,000). Category 3 costs are significantly higher due to more sophisticated air handling ($1,000-2,000/day), specialized barrier construction, and intensive monitoring. Contractor labor for specialized installation and daily compliance activities adds substantial cost. Budget 15-25% additional project cost for robust Category 2 controls; 30-50% additional for Category 3. Costs vary based on project scope and local contractor availability.

    Q: How should HVAC systems be managed when adjacent patient care areas have vulnerable patients?

    A: Permanently isolate construction zone from patient care HVAC systems; use dedicated temporary air handling for construction area. For Category 2, construction area air can be filtered and returned to occupied spaces through HEPA units. For Category 3, all construction area air must be exhausted to exterior with HEPA filtration. Plan coordination with building engineers and HVAC technicians; ductwork modifications may be required. Return to permanent system operation only after completion, cleaning, and HVAC recommissioning.

    Q: What monitoring should continue after construction completion?

    A: Post-construction monitoring should include: (1) HVAC commissioning and air quality verification, (2) duct cleaning and air pressure verification, (3) environmental surface cleaning and environmental culture sampling (particularly for Aspergillus in immunocompromised areas), (4) water system flushing and microbiologic testing if water lines were disrupted, (5) visual inspection of renovation area for cleanliness and proper closure of utility penetrations. Infection prevention sign-off required before area reopens to patient use. For high-risk areas, post-construction environmental surveillance may be considered.


  • Healthcare Facility Maintenance Programs: Preventive, Predictive, and Reliability-Centered Strategies
